PUMP
SYSTEMS
B-Dry System Cleveland - Pump Options
We normally use pump systems that range from 1/3 to 3/4 horsepower, with pumping capacities of up to 3,700 GPH on an 8' lift. Our pumps are installed up to city code and in most cases we include the electrical circuit for the installation.Pump Specs:
Primary Motor:
The PitBoss 3/4 HP Stainless-Steel Sump Pump is our flagship pump, currently installed in thousands of homes across the country. The PitBoss features submersible, cast-iron and stainless-steel construction, along with an energy-efficient 5-AMP motor.
The top-suction design eliminates clogging and air-locking. This Deluxe Kit (All In One Box) includes: the pump, silencer check valve and boot, and a newly redesigned float switch tested and rated to 1-million cycles.
- 3,702 gallons/hour at a 10′ lift

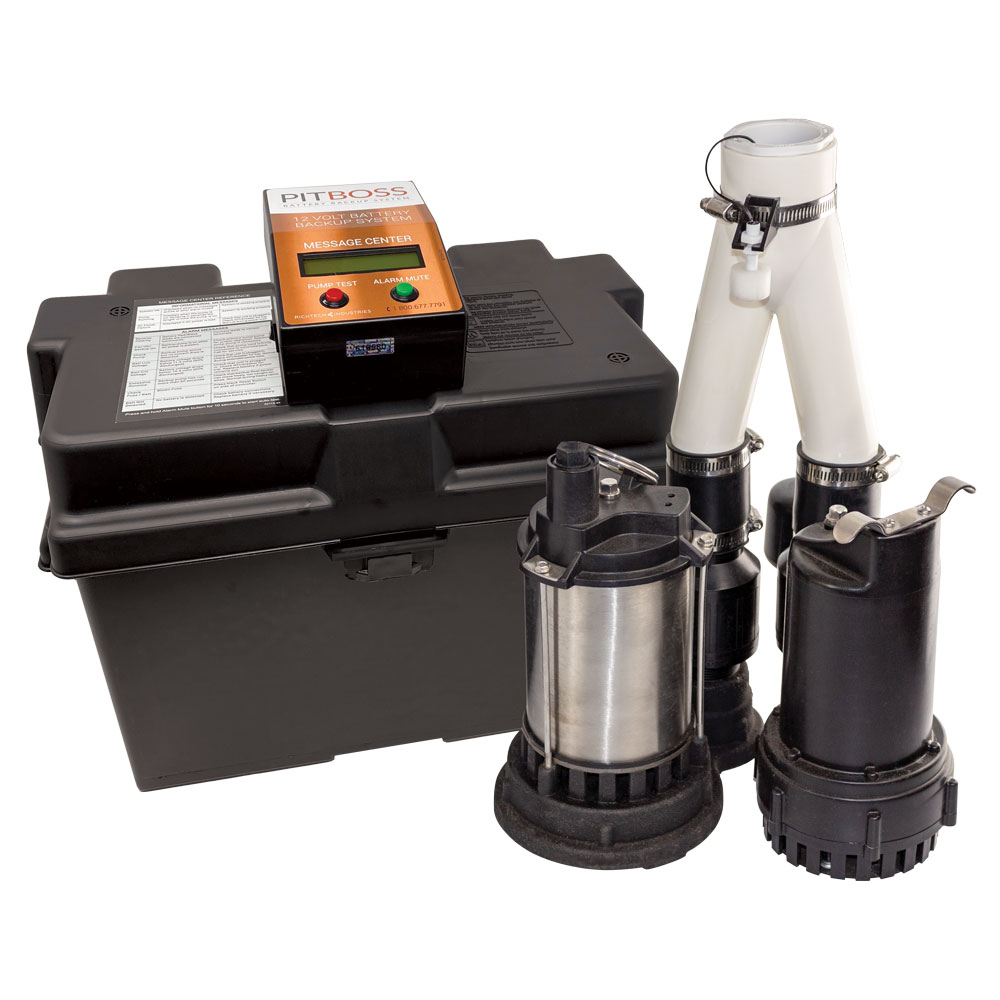

Primary Motor & Backup Combo:
A complete primary and backup sump pump solution. Includes PitBoss 3/4 HP Stainless-Steel Primary Pump, backup pump, system controller, float switches two check valves, “Y” connector and battery case. Also available with a cast-iron primary pump.
Pre-assembled and ready for installation.
- Stainless-steel and cast-iron primary pump construction
- PitBoss Primary Pump features an efficient 5-AMP motor that uses 50% less energy
- Highest output backup pump available
- Daily automatic self test
- Waterproof controller circuit board
- 4,920 gallons/hour at a 10’ lift
75 AMP Battery included with initial Pitboss Combo Kit installation

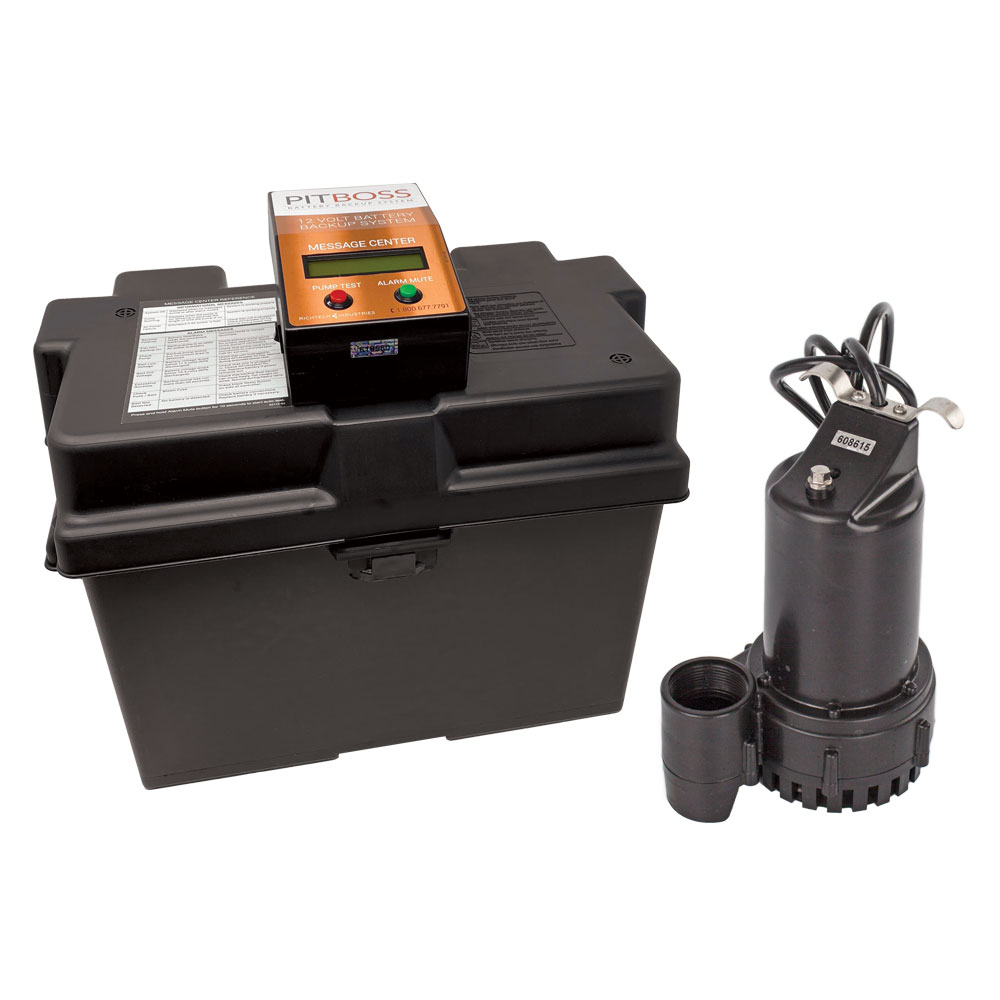

Battery Backup Unit:
Most powerful 12-volt Battery Backup System pumps 2,580 gallons/hour at a 10′ lift. The PitBoss Battery Backup System features a waterproof circuit board for increased reliability near the sump basin. Warnings and alarms signal the homeowner if there is a problem. Controller automatically tests the backup pump weekly. Includes: built-in charger, float switch, backup pump, and battery case.
- Highest backup pump output available
- Daily automatic self-test
- Hi-tech waterproof circuit board
- LCD screen displays important messages
- 24-hour alarm silence
- System monitors and maintains battery automatically
75 AMP Battery included with initial Pitboss Battery Back-up installation
Most municipalities that require a permit also require a sump pump. The pump is normally discharged to the city storm sewer or a drywell system that we install. There are a few circumstances that require an alternative connection, such as trenching a line to a culvert drain, natural watershed....ect.
Most of our basement waterproofing installations require a sump pump as well. We only install the 3/4 horse Pitboss pumps and do not recommend any pump smaller than a 1/3 horse. The 3/4 horsepower PitBoss pump is capable of discharging over 4,000 gallons of water per hour on a 10 foot lift.
The location of the sump pump crock is usually in an inconspicuous corner of the home, normally near utilities, and connected to the downspout leader (storm sewer). This allows the water around the foundation to exit the home quickly.

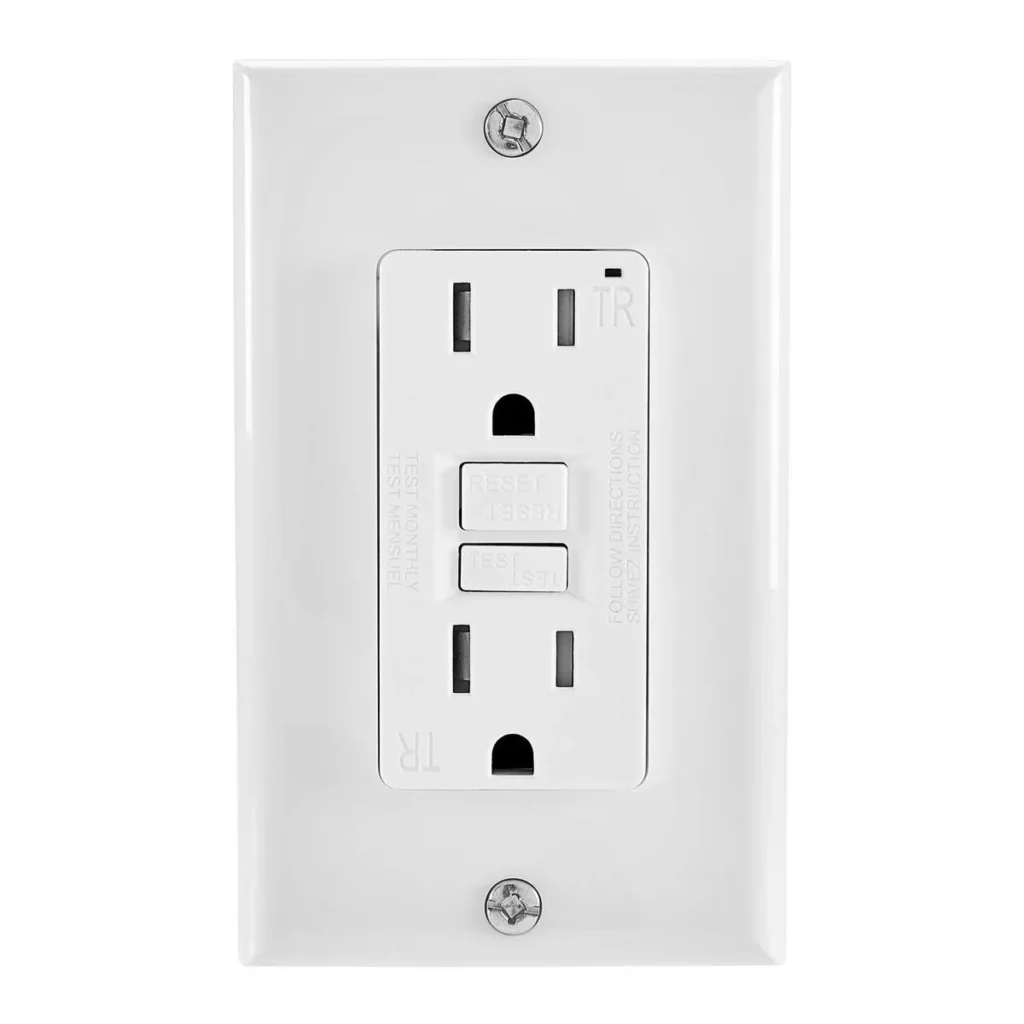

Pump installations require an electrical circuit to be installed. We normally install the electrical outlet, but in some circumstances the customer is responsible to supply a 20 amp circuit for power to the pump. Please ask your basement waterproofing consultant for more details if required.
